Cuboid ceiling is a type of suspended ceiling that uses cuboid rails – a metal profile with a rectangular cross-section. This type of suspended ceiling is suitable for any type of premises and will satisfy even the most sophisticated taste of customers. By changing the spacing of the rails, you can install original lighting fixtures that will improve the lighting and create additional comfort for guests.
Cubic shaped ceiling
From $20.00 for 1 m²
Cubic shaped suspended ceiling or cube rail
Cubic shaped ceiling – an innovative suspension system for the exclusive decoration of the ceiling space. In this model of a suspended ceiling, a cube-shaped strip is used – a metal profile with a rectangular section. This type of suspended ceiling is suitable for any kind of premises and will satisfy the most sophisticated taste of customers. Changing the step of fastening the slats will allow you to install original lamps that will improve illumination and create additional comfort for guests.
Advantages of cube systems
UNIQUE APPEARANCE
Cubic shaped ceiling creates the impression of infinity and depth, and in combination with lighting elements it will look new from different points of view and, of course, will not go unnoticed. Slats with a square or rectangular cross-section look original, and the ceiling itself acquires additional volume. In addition, the room is visually enlarged due to the visible ceiling space – from the point of view of design, this is also a significant plus. It is an excellent solution for ceiling decoration in an office, restaurant, sports club, gas station, shopping or exhibition center.
UNIVERSALITY
They can be installed in almost any room, regardless of the state of the ceiling. The ceiling makes it easy to get to the communications hidden under it. The main requirement is a sufficient bearing capacity of the base, but even here the small mass of cube-shaped ceilings distinguishes them favorably from a number of other structures.
The ceilings have excellent performance, are easy to maintain and require little maintenance, which means they will last for many years. ⠀
FIRE RESISTANCE AND WATER RESISTANCE
Rack cubic shaped ceiling are made in accordance with all fire safety standards, they are resistant to moisture and corrosion, perfectly absorb extraneous noise. Ceilings of this type are classified as low-flammable materials (flammability class G1), which allows them to be used in the design of a room with almost no restrictions. Metal profiled slats, protected from corrosion by a polymer coating, practically do not interact with atmospheric moisture. Thanks to this, ceilings of this type can be installed in swimming pools and other rooms with high humidity.
Specifications
Cuboid slats are produced with a standard width of 34 mm. The height of the slats depends on the modification: 3 options are available for order with heights of 42, 68 and 105 mm.
The standard length of a cube-shaped lamella is 3 m.If you need to finish a large room and you do not want to leave visible joints, you can order the production of elongated lamellas 6 m long.
Lamellas are made from three different materials. For production, aluzinc with a thickness of 0.45 mm, aluminum with a thickness of up to 0.5 mm or galvanized steel 0.45 mm are used.
Aluminum-zinc and steel ceiling slats are coated with a polymer material that protects the metal base from corrosion. This allows the use of ceilings in rooms with high humidity.
| Designation | № |
|---|---|
| KB 1 | 26 |
| KB 2 | 45 |
| KB 3 | 55 |
| KB 4 | 65 |
| KB 5 | 80 |
| KB 6 | 100 |
| TECHNICAL SPECIFICATIONS | ||||||
|---|---|---|---|---|---|---|
| Cuboidal rail | KB-1 | KB-2 | KB-3 | KB-4 | KB-5 | KB-6 |
| Width A, mm | 35 | 35 | 35 | 35 | 35 | 35 |
| Gap C, mm | 15 | 15 | 15 | 15 | 15 | 15 |
| Height H, mm | 48 | 67 | 77 | 87 | 102 | 122 |
| Rail height H1, mm | 26 | 45 | 55 | 65 | 80 | 100 |
| Material | Alum. 0.38; 0.4 mm. Steel galv. 0.4; 0.45 mm | |||||
| Length | Standard – from m. | |||||
| Operating temperature | Not more than ±90 C | |||||
| Moisture zone | Dry, normal, wet (DBN V.2.6-31:2006) | |||||
| Fire safety | Flammability – G1 | |||||
| CONFIGURATION | SYSTEM BRAND | |||
|---|---|---|---|---|
| PRODUCT NAME | PRODUCT BRAND | COST PER 1 M2 | PRODUCT BRAND | COST PER 1 M2 |
| Cube-shaped rail | KB-1 | 20 m.p. | KB-2 | 20 m.p. |
| Traverse | 0.89 m.p. | 0.89 m.p. | ||
| Box | By calculation | By calculation | By calculation | By calculation |
| Suspension | AP | 0.83 set | AP | 0.83 set |
| Connecting element (L=200) | By calculation | By calculation | ||
| CONFIGURATION | SYSTEM BRAND | |||
|---|---|---|---|---|
| PRODUCT NAME | PRODUCT BRAND | COST PER 1 SQ.M. | PRODUCT BRAND | COST PER 1 SQ.M. |
| Cube-shaped rail | KB-3 | 20 m.p. | KB-4 | 20 m.p. |
| Traverses | 0.89 m.p. | 0.89 m.p. | ||
| Box | As per calculation | As per calculation | As per calculation | As per calculation |
| Suspension | AP | 0.83 set | AP | 0.83 set |
| Connecting element (L=200) | As per calculation | As per calculation | ||
| CONFIGURATION | SYSTEM BRAND | |||
|---|---|---|---|---|
| PRODUCT NAME | PRODUCT BRAND | COST PER 1 M2 | PRODUCT BRAND | COST PER 1 M2 |
| Cube-shaped rail | KB-5 | 20 linear meters | KB-6 | 20 linear meters |
| Traverse | 0.89 linear meters | 0.89 linear meters | ||
| Box | As calculated | As calculated | As calculated | As calculated |
| Suspension | AP | 0.83 sets | AP | 0.83 sets |
| Connecting element (L=200) | As calculated | As calculated | ||
Scope of application
The original shape of the cubic shaped ceiling opens up extensive possibilities for the use of such structures in the decoration of various premises. In private construction, cubic shaped ceiling ceiling suspension systems are used relatively rarely – they are used mainly for decorating gazebos, verandas, terraces, open sheds, etc.
But for the commercial sector, cubic shaped ceiling have become a real boon. A voluminous suspension system with a visible ceiling space allows you to transform any room. Therefore, they mount cubic shaped ceiling:
The possibility of making lamellas up to 6 m long and combining them with other ceiling structures also allows the use of cubic shaped ceilings in the decoration of premises with a large area. An example is the use of such structures in the design of airports and bus stations.
Practicality also speaks in favor of a cubic shaped ceiling for commercial real estate. Lightweight and durable lamellas with a protective and decorative polymer coating are securely fixed on the guides, easily dismantled for access to communications and, at the same time, practically do not require maintenance. Keeping the ceiling clean is possible with minimal effort, even if the structure has a large area and is located at a considerable height.

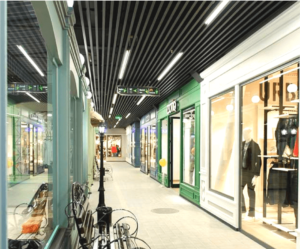

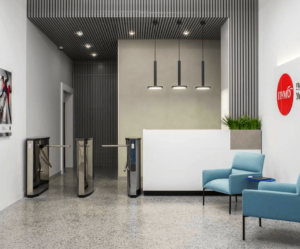

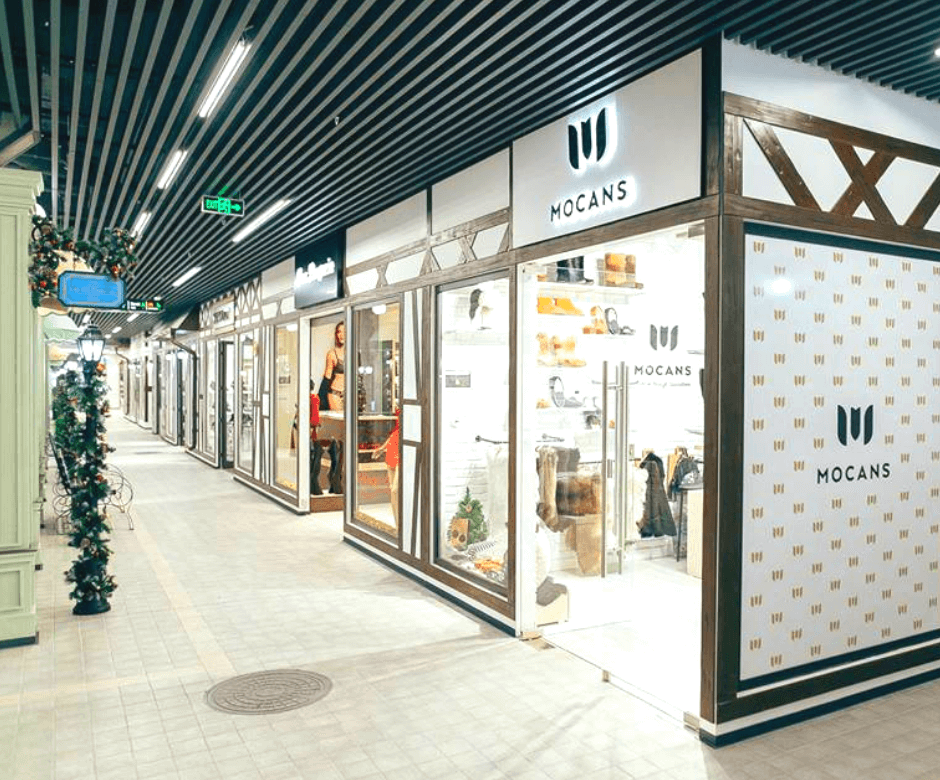

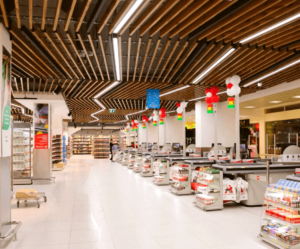

Completed projects
Video review of the Cubic shaped ceiling from the Mehbud plant
Design potential
The main argument that is taken into account when choosing a cubic shaped ceiling for a cafe, restaurant. SEC or other commercial facility – the most attractive appearance. Even without taking into account the color scheme, the ceiling structure looks original – individual cuboid lamellas form a volumetric surface with emphasized depth. The effect is enhanced by combining a cubic shaped ceiling with lighting fixtures (examples are in the photo). The use of narrow fluorescent lamps and LED luminaires allows you to create the most harmonious picture that emphasizes and sets off other design solutions in the premises.
Color solutions
Thanks to a huge palette of colors and textures, a variety of shapes and sizes of cubic shaped ceilings, they have an excellent design potential for creating unique solutions. The ceiling rail can be painted in any color from the RAL catalog. Introducing the basic colors:
Light gray
RAL 9006
Beige
RAL 1015
Green
RAL 6020
Dark grey
RAL 7024
Brown
RAL 8017
White
RAL 9003
Textures
Any pattern can be applied to the surface of the slats:
Dark wood
Light wood
Golden oak
Dark walnut
Our work
Incredibly beautiful and stylish solutions for decorating ceiling spaces from the Mehbud plant
