Metal gate Rancho Double from the manufacturer of the Mehbud plant. This unique type of profile has no analogues in Ukraine. An excellent solution for any building.
Rancho Gate Double
From for 1 m²
Rancho Gate Double
The MehBud plant produces double Rancho gates, using high-quality raw materials (profiled pipes, steel and aluminum lamellas), as well as components from well-known manufacturers. The complete set of structures is developed taking into account the most urgent needs of customers, therefore you can easily choose the appropriate option by examining the characteristics of the set.
Gates with infill Rancho Double is a beautiful and reliable solution for your home ownership.
Specifications

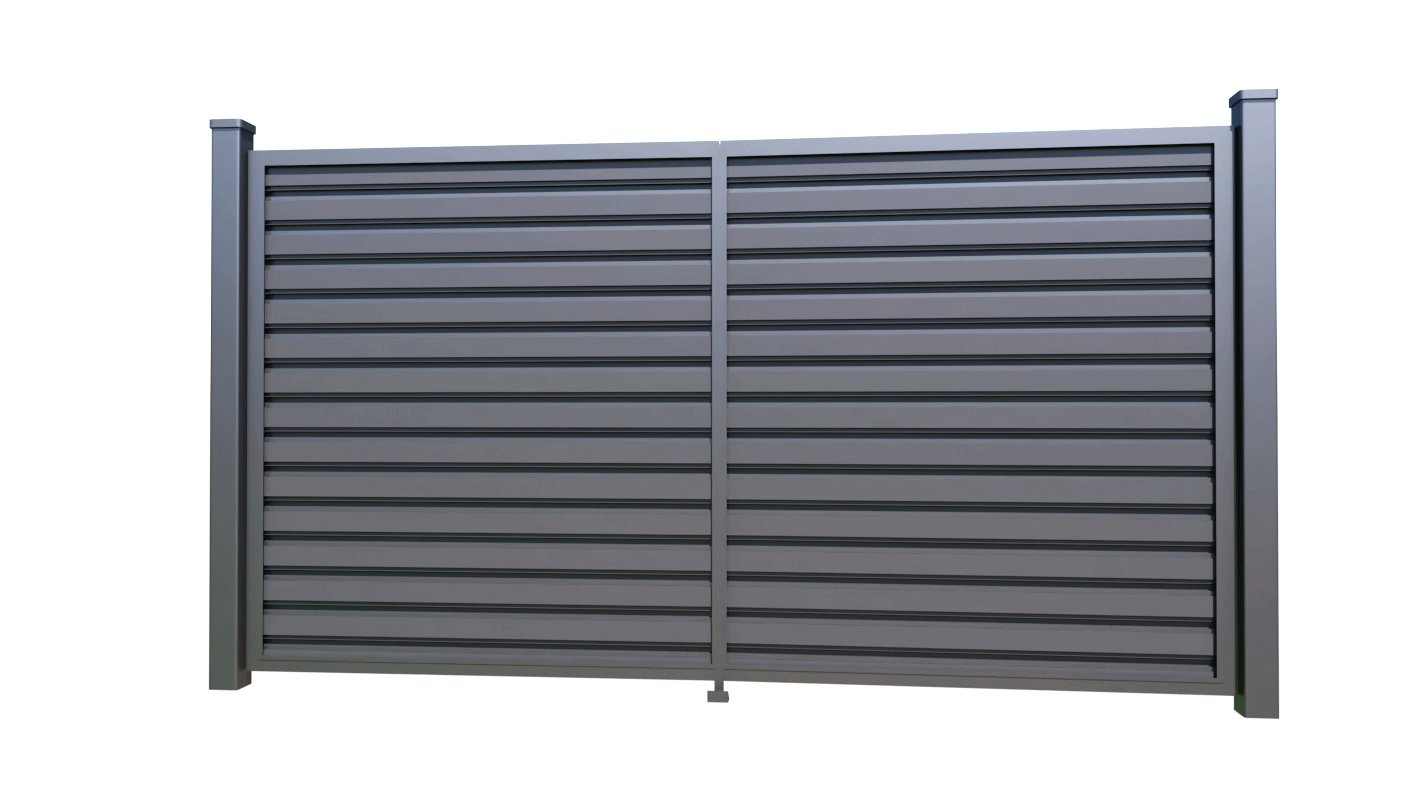

The swing design is classic, it appeared when the movable hinges were invented. As a rule, swing gates are made double-winged: the doors are hung on the support pillars and pivot on the hinges when opening and closing.
The frame is made of profiled steel pipes 60×40 and 50x40mm, steel pillars 100×100 mm are used as supports.
As the filling of the swing gates of the Rancho Double, profiles made of metal with a thickness of 0.4 or 0.7 mm, with galvanization and a protective and decorative polymer coating, can be used. The decor options are similar to those used in the production of sliding gates.
Support structures and guides installed on the ground must be concreted to ensure maximum stability of the system and the absence of distortions when moving a heavy sash.

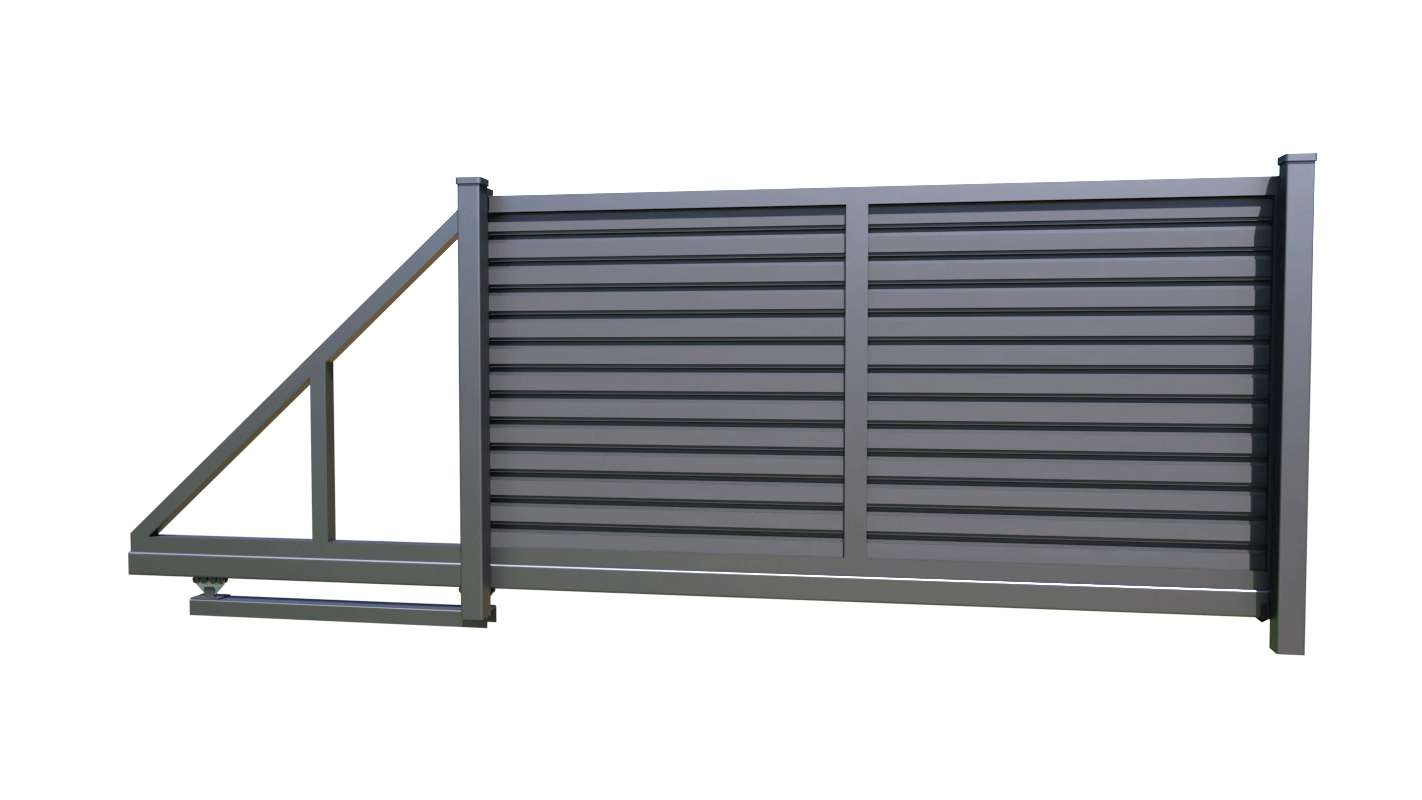

Sliding gates Rancho Double from the MehBud plant have a single-leaf design. A sash with a size of welded 6000x2000mm / with filling of 4000×2000 mm moves on channel-type guides (with a width of 160 to 200 mm).
The frame is made of profiled steel pipes 60×40 and 50x40mm, steel pillars 100×100 mm are used as supports.
As the filling of the sliding gate leaves, metal profiles with a thickness of 0.4 or 0.7 mm, with galvanization and a protective and decorative polymer coating, can be used. The decor options are similar to those used in the production of Rancho Double swing gates.
Support structures and guides installed on the ground must be concreted to ensure maximum stability of the system and the absence of distortions when moving a heavy sash
Video review
Rancho Gate Complete Set Double
Economy
Economy is a package that, at an affordable cost, provides a fairly extensive functionality. The frame and support pillars are made of a steel pipe that is not subject to additional cleaning and anti-corrosion treatment – therefore, after installation, the parts must be painted (periodically, the protective layer must be renewed). The movement of the sash is provided by the operation of the SP-6 STANDART mechanism with a roller carriage and a toothed rack. This hardware set is designed for folds up to 500 kg, and therefore easily copes with opening and closing the gate.
Standard
Standard – a variant with a complete set similar to the previous set. The main difference is the use of sandblasted metal parts. The set of parts for opening is also represented by the SP-6 STANDART fittings.
Premium
Premium – a complete set designed for the maximum functionality of the doors, as well as for the maximum period of their service without adjustment, repair and maintenance. The frame and supporting structures are made of powder-coated galvanized pipe: this makes periodic painting unnecessary and completely eliminates the risk of corrosion. In addition to the SP-6 STANDART sash opening hardware, the design is also completed with an opening automation system, including a photocell and a signal lamp. Thanks to this, the door opening in the Premium configuration can be made fully automatic – when the photocell is triggered, the drive will turn on and the leaf will roll back along the guides.
Implemented objects
